Carbon Film Resistor 100K 0.5W 5%

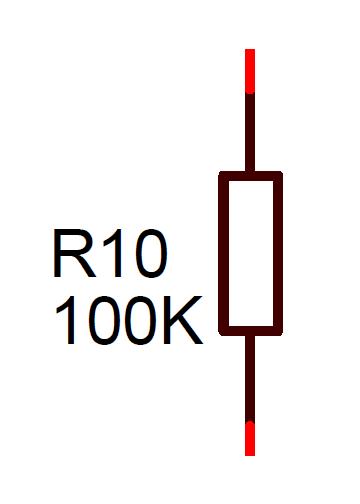

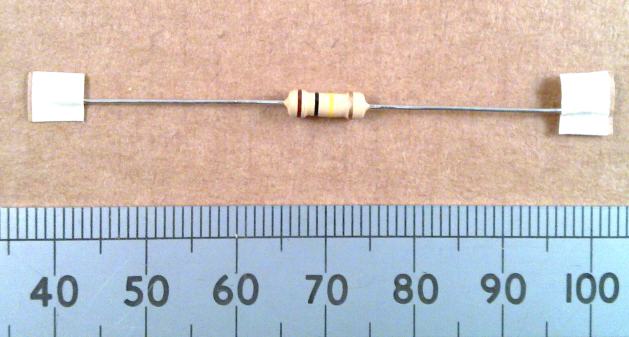

Carbon Film Resistor 100K 0.5W 5% PictureR10 100K Ohm Resistor Electronic Schematic Diagram Symbol

Colour code: Brown, Black, Yellow = 1,0 and four zeros = 100,000 Ohms = 100K.  The final gold band indicates 5% resistance tolerance.
