100nF 50V Ceramic Disc Capacitors C2 and C3

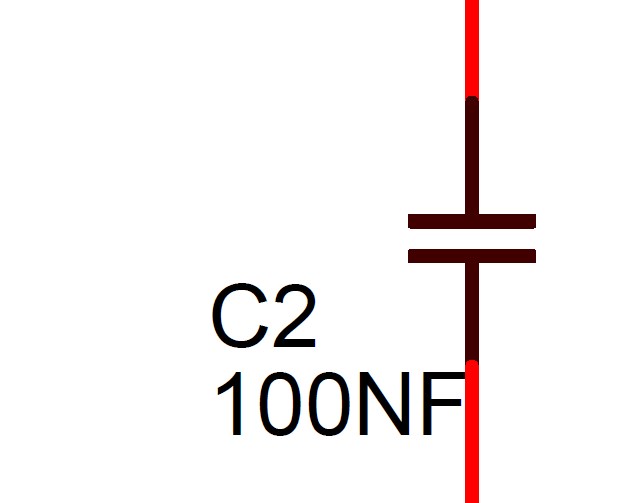

100nF 50V C2 Schematic

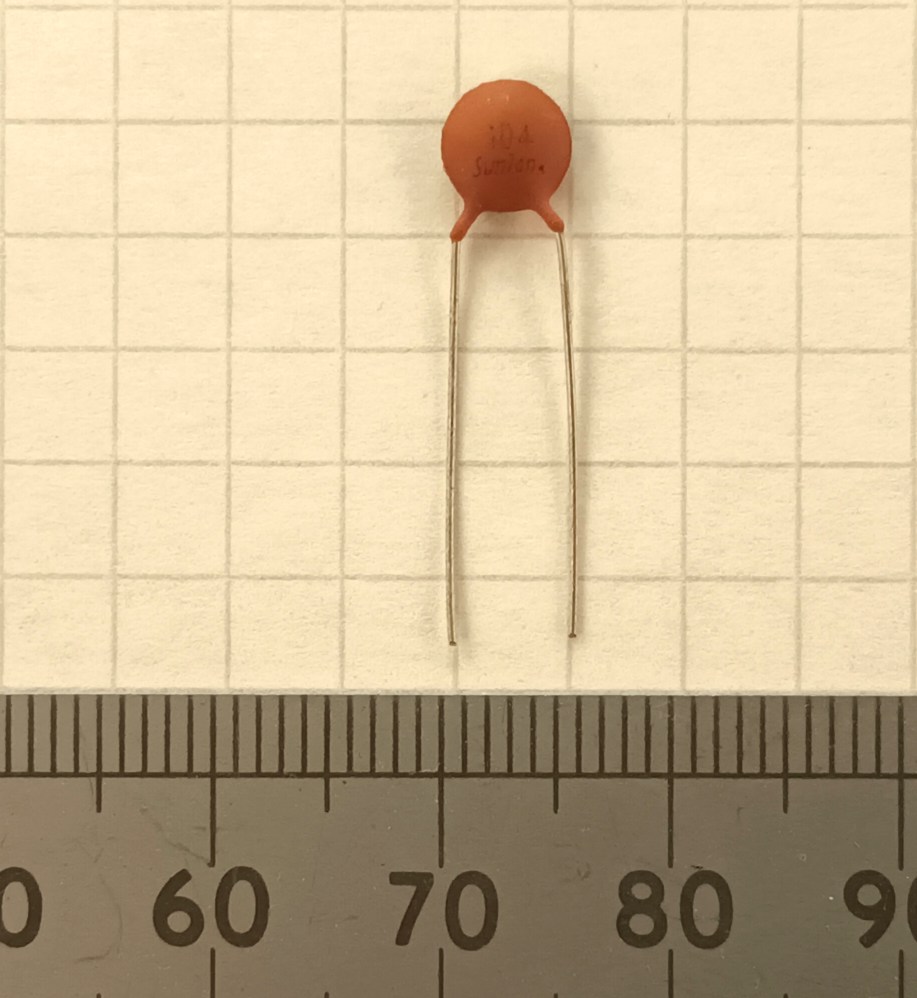

              Symbol100nF 50V 104Z Ceramic Disc
              Capacitor


100nF = 0.1uF = 100000pF  Ceramic disc parts are chosen because they are inexpensive, and it is all that is needed for this non-critical circuit function.  The 104 marking refers to 1, one zero, and four zeros, making 100000pF.  You may see similar capacitors marked as 104Z.  The Z refers to the properties of the ceramic dielectric in terms of change of capacitance with temperature.

In the circuit, C2 and C3 do various things.

a) Both provide a straightforward path to ground for R.F. signals in L1.
b) C2 provides a smoothing reservoir capacitor for the rectified radio signal coming down from Q1 to feed an audio voltage into L2.
c) C3 lifts the voltage of pin 5 of L1, and hence the base of Q1 at audio frequencies to provide an ongoing source of audio bootstrap base bias.
d) From a "signals and systems" analysis viewpoint, it's a bit crackers, because four interdependent things are going on simultaneously.  PSPICE this one.
