J1 PP3 / MN1604 Battery Clip

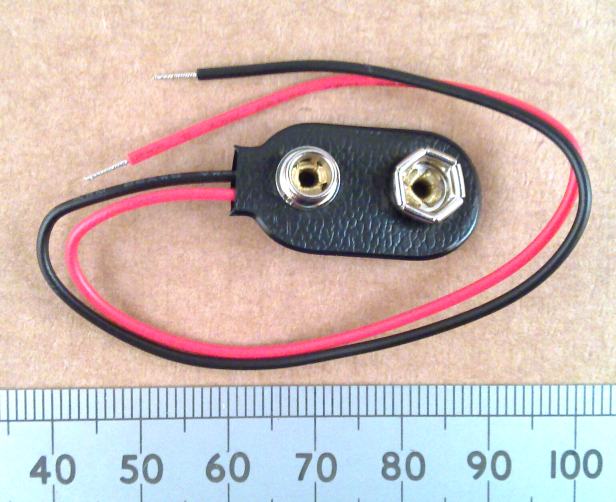

PP3, 6LR61 or 1604A Battery ClipTwo Pole Connector Schematic Symbol Used For J1 Battery
            Clip

J1 is the PP3, 6LR61, or 1604A Battery Clip.  A somewhat better quality, hard plastic type is now supplied in the kit.
