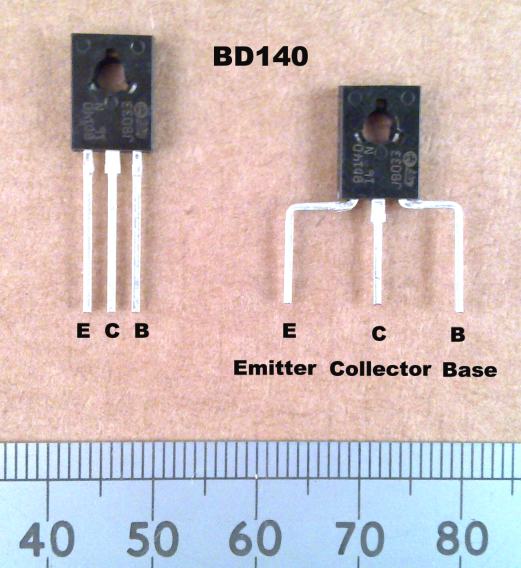

BD140 PNP Medium Power Audio Driver Transistor

BD140 PNP Audio Driver Transistor As Used In A Class B Output StagePNP Transistor Schematic Symbol

In the circuit, Q6 is used as the top, PNP driver transistor in the class B output stage pair.
