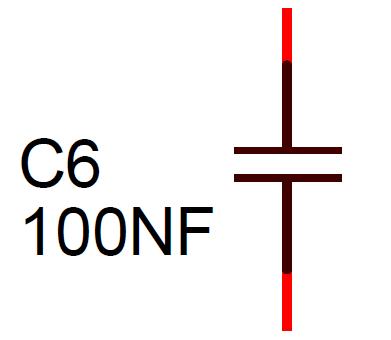

C6
Ceramic Disc Capacitor 100nF 104Z
The marking on these capacitors is 104Z. 104 is the
capacitance value in picofarads (pF) where this is read as 1,0,
followed by four zeros. The Z is an indication of the
temperature stability and dielectric properties. In the
circuit, C6 is used in conjunction with Q3 as part of an active
rectifier demodulator to turn the radio signal into audio.
0.1uF = 100nF = 100,000pF
